Eshiner New Energy Limited, founded in 2016 by the engineers of Eshiner Industrial Design Limited, is devoted to making clean energy and technology more affinity into the life. Today Eshiner is working hard to achieve the wish, and believes the technology will make our life a new look sooner.

eshiner

Solar Parking Shed

In the future, with the parking space increasingly limited in the city, accordingly Eshiner designs the Solar Parking Shed to meet the demand of charging in the coming era of electric cars. The Eshiner Solar Parking Shed, with efficiently solar-powered technology, can provide power not only for electric cars, but also for the home use and rest to the grid. Besides the charging function, the Solar Parking Shed integrates other valuable functions such as surveillance and smart lock device, which is more suitable for large parking lots in the countryside or home.

Model & Function

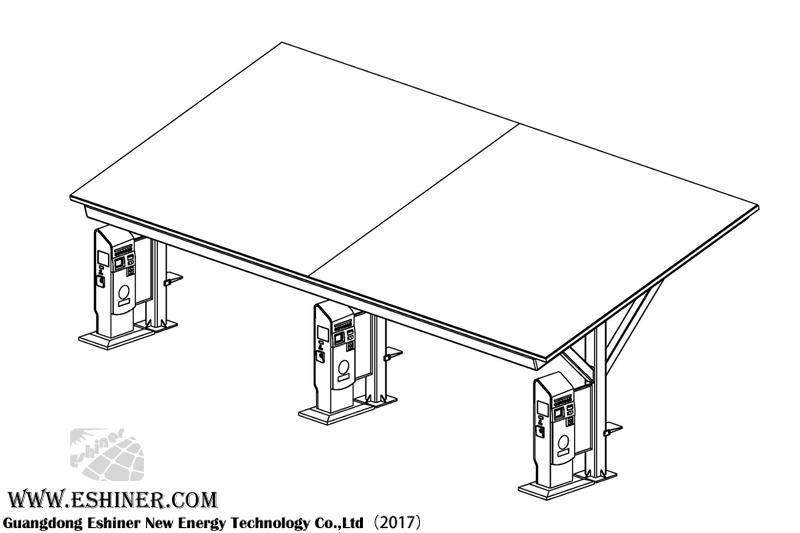

YH-700 Solar Parking Shed(Haplotype)
YH-701 Solar Parking Shed(Somatotype)
YH-702 Solar Parking Shed(Intelligent)
Customization Model Contact us for detailed specification, and we can support the customization design for you.

Warranty & Specification

Product Type Haplotype
Theoretical Duration of Use >=15Year Theoretical Wind Rating >=12(32m/s) Theoretical Earthquake Rating >=8Level
Power Generation Per Day (Average) 22KW/H Battery capacity 600AH/48V Operating temperature -10-60(度)
Sheds Material High Performance monocrystalline / Polysilicon
Specification of Shed Body 6.5m*5.5m*2.5m(Length× Width× Height)
Shed Body Material Carbon steel/ ABS
Colors White/Silver/Green/Yellow
IP/ Warranty IP55, Transported in spare part, and assembly on site
Standard Configuration 40W LED Light×1; USB Charger×4; AC 220/110V outlet; Socket×2 ; WIFI Module; Surveillance Wireless; Multipurpose Storage Box; AC / DC car charging pile; AC / DC electric motorcycle, electric bicycle charging pile;
Optional Configuration: Smart Rainwater Collection & Vehicle Cleaning System
Product Type Somatotype
Theoretical Duration of Use >=15Year Theoretical Wind Rating >=12(32m/s) Theoretical Earthquake Rating >=8Level
Power Generation Per Day (Average) 45KW/H Battery capacity 1200AH/48V Operating temperature -10-60(度)
Sheds Material High Performance monocrystalline / Polysilicon

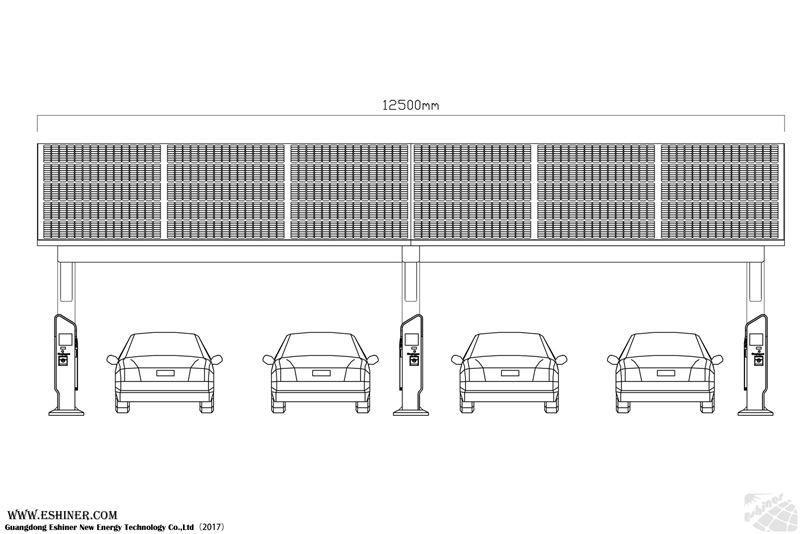

Specification of Shed Body 12.5m*5.5m*2.5m(Length× Width× Height)
Shed Body Material Carbon steel/ ABS
Colors White/Silver/Green/Yellow
IP/ Warranty IP55/2Year, Transported in spare part, and assembly on site
Standard Configuration 20W LED Light×1; USB Charger×4; AC 220/110V outlet; Socket×2 ; WIFI Module; Surveillance Wireless; Multipurpose Storage Box; AC / DC car charging pile; AC / DC electric motorcycle, electric bicycle charging pile;
Optional Configuration: Equipment suspension devices for 5G micro-station, Equipment case/ Smart Rainwater Collection & Vehicle Cleaning System / Smart Parking Lock

Important Message: Special Information

All the products require design and testing according to your region’s factors, such as national regulation, environment, climate, geological structure, to guarantee the product’s safety and reliability. Please feel free to contact us for details.

More technical information, please email us or our agents.
